NOAH Integration Audiqueen can be configured to retrieve audiograms and speech audiograms from a NOAH database (see himsa.com) automatically and to send audigram data from Audiqueen to NOAH. For this, NOAH Web Service (WSI) needs to be added to the NOAH and Audiqueen infrastructures. The WSI-license can be provided by HIMSA or by Otoconsult. See also the NOAH Integration Installation Manual.
It is essential that the NOAH file of a patient gets linked or paired with his/her file in Audiqueen. The way to do this depends on where the patient file is created first.
For a seamless transfer of data, it is recommended to configure NOAH and Audiqueen as follows.

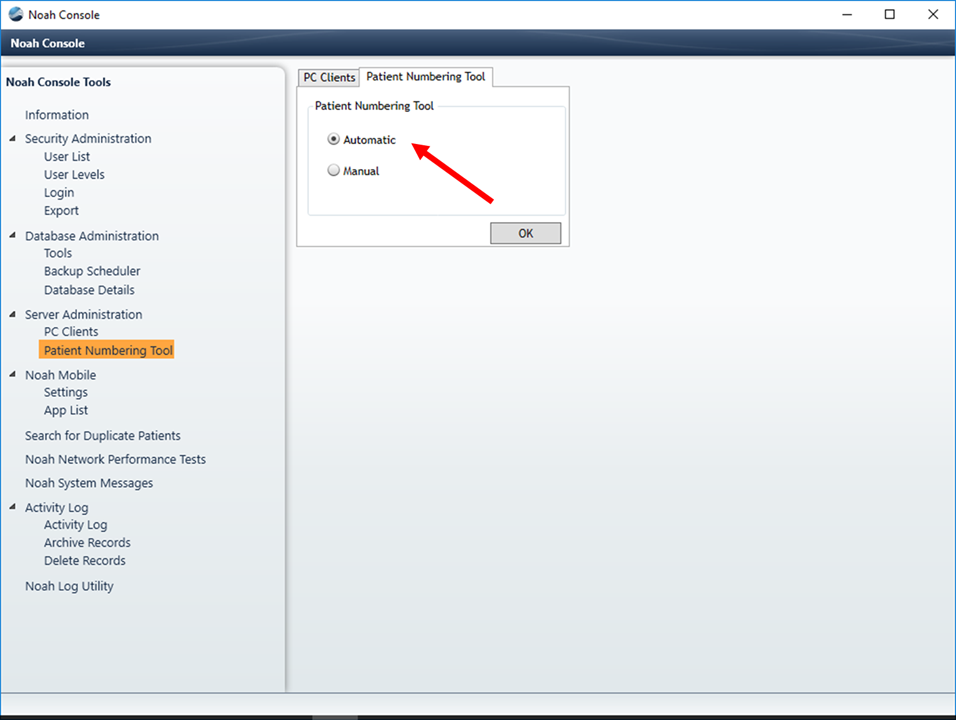

- NOAH: set NOAH's Patient Numbering Tool to Automatic.

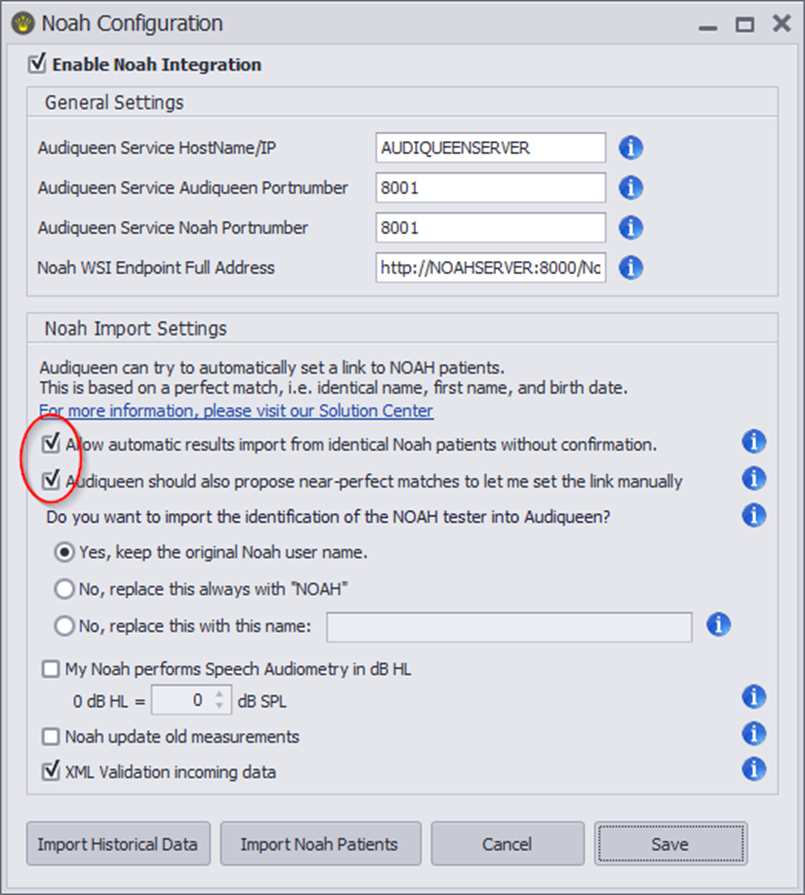

- Audiqueen: check the 2 checkboxes in the Noah Import Settings, as indicated in this figure...

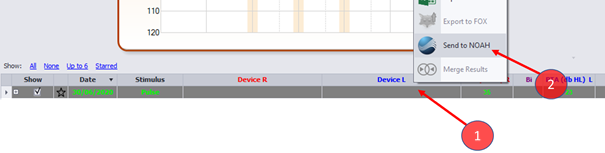

After creating a patient in Audiqueen (either manually or starting from your EMR), and entering an audiogram, right-click on the result gridline and click on Send to NOAH.
The patient will now be automatically created in NOAH, paired with the Audiqueen patient and the audiogram will appear in NOAH.
From now on, if a result is created in Audiqueen and sent to NOAH (by right clicking on the result line in the grid), the result will automatically be available in NOAH.
If you don't want NOAH to automatically assign a number to the patient's file, then set NOAH's Patient Numbering Tool to Manual (see above).
If you now open NOAH, this icon appears to indicate there is a new patient in the cue.

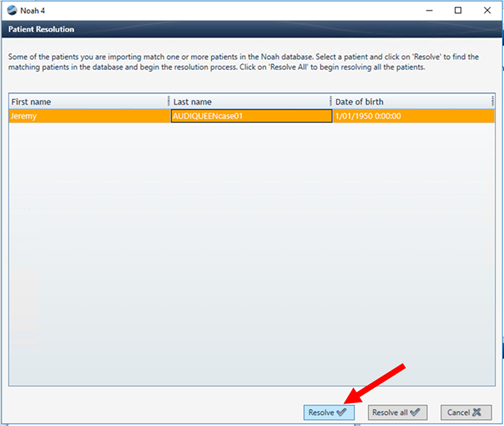

Click on this icon, then select the patient in the NOAH Patient Resolution Window and click on Resolve.
NOAH will now ask you to enter a number manually.
Now both files (NOAH and Audiqueen) are paired and the patient and the audiogram appear in NOAH.
After creating a patient in NOAH, and entering an audiogram or a speech audiogram, create the same patient in Audiqueen.
Audiqueen will detect the NOAH homologous patient and automatically pair both files and import the NOAH results.

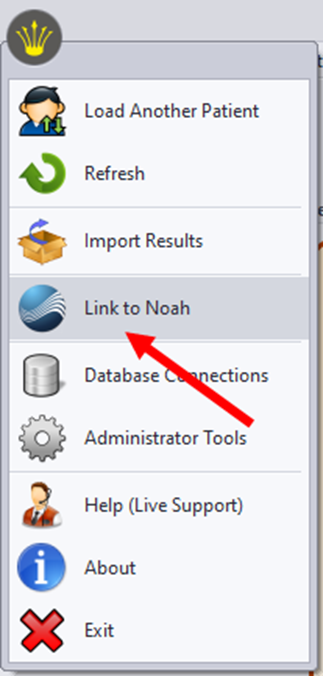

If you don't want Audiqueen to automatically set the link, without any manual confirmation by the user, you can uncheck the corresponding checkbox (Always ask to Import NOAH Patient) in Audiqueen's settings (see above). Now you need to manually establish the link by clicking on this button

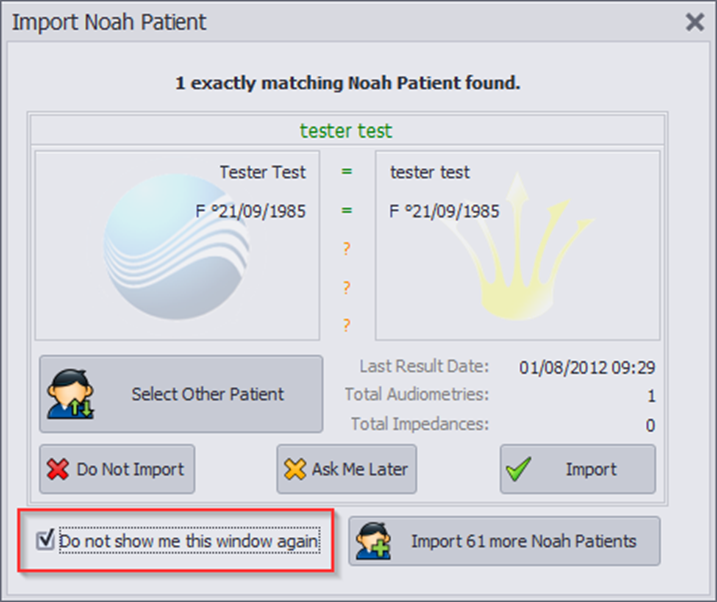

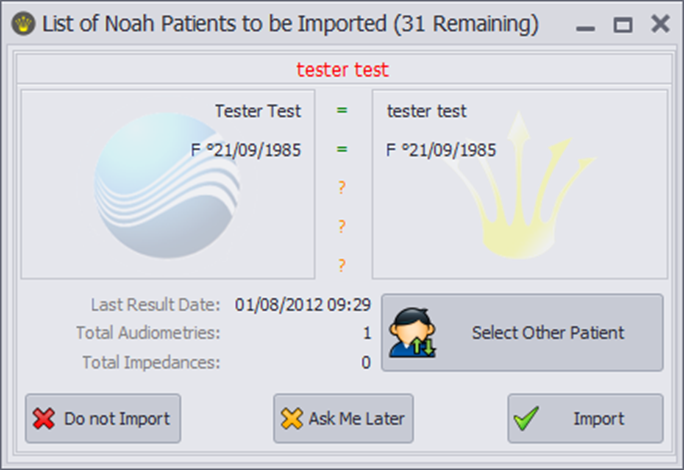

Audiqueen automatically detects that this patient exists in NOAH and asks to link both cases.

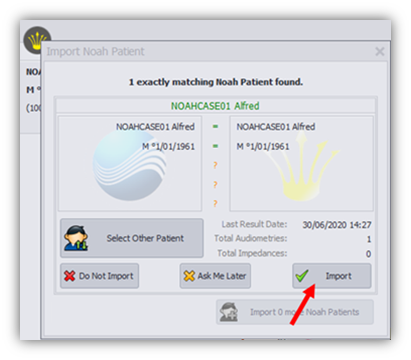

Click on Import to pair both files (in NOAH and Audiqueen) and to import the available audiological results.
From now on, if a result is created in NOAH, it will automatically be available in Audiqueen.

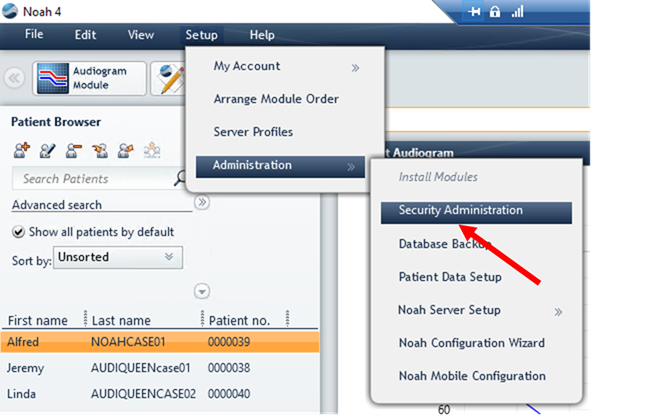

NOAH can be configured to export data automatically after saving a test result. Alternatively, the user can opt for manual export of data. Exported data then becomes available in Audiqueen (see further).

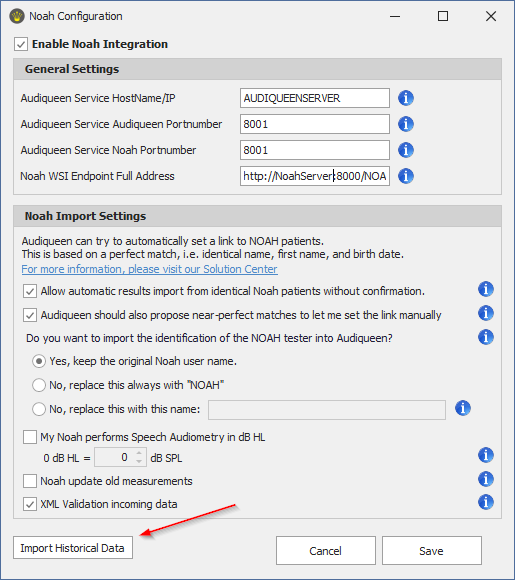

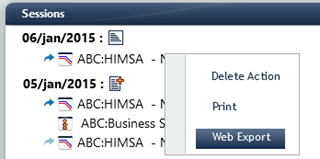

Manual export of NOAH-test results.Audiqueen can also request NOAH to export historical data (from a certain period)
and make them available to Audiqueen. This feature is typically used once, typically during the installation of the NOAH link.
Screen captures of the Audiqueen feature to request historical NOAH-data.
