Where do I find the details of a tympanogram?

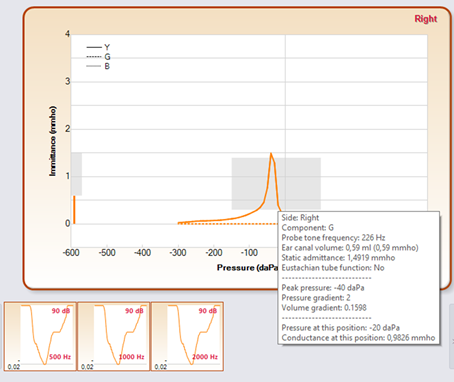

Audiqueen stores the numerical data (pressure vs. immittance) of tympanograms for both ears and all possible probe tone frequencies. It also stores the ear canal volume and the static admittance of tympanograms.  The values can be found by hovering with the mouse over the graph of the tympanogram.

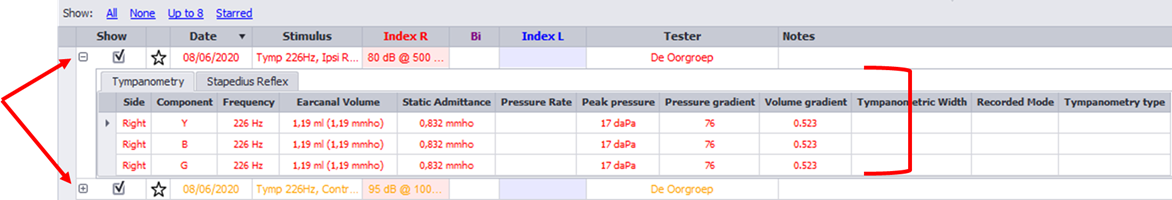

They can also be found in the result grid by expanding the result line (click on +)

Audiqueen allows classifying tympanograms per Jerger Type.

Screen capture showing how the list displays detailed indices.

Audiqueen displays the normal zone for tympanogram peak compliance and width.

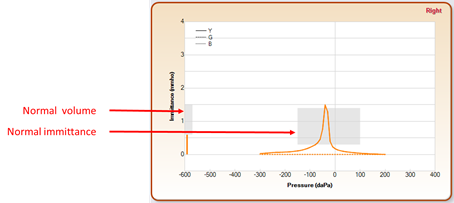

The grey zones indicate the normal values for the outer ear canal and immittance.

This feature is not available in the web viewer.
